簡單介紹：
STP-iXR2206 ISO250F Edwards磁懸浮渦輪分子泵其設計理念與 STP-iXA2206/iXA3306 系列相同。新的**性轉軸設計提高了抽取性能，這一集成的產品易于安裝且占地面積小，可作為應用工具的一體化解決方案。
STP-iXR2206 ISO250F Edwards磁懸浮渦輪分子泵可提供業內的性能，機載控制裝置中包含新的小型電源供給。
詳情介紹：
概述
STP-iXR2206 系列磁懸浮渦輪分子泵可提供業內的性能，機載控制裝置中包含新的小型電源供給。其設計理念與 STP-iXA2206/iXA3306 系列相同。新的**性轉軸設計提高了抽取性能，這一集成的產品易于安裝且占地面積小，可作為應用工具的一體化解決方案。
應用
玻璃涂層
太陽能 PVD
工業濺射
特性與優勢
泵和控制器之間不需要連接電纜。
消除了傳統架裝式控制器的安裝空間和成本。
緊湊型設計使安裝更加方便，占地面積更小。
與 STP-A1603 配套時在 8” TMP 同類產品中抽取速度高。
使高氣體流速的功耗降低了 32%。
I/O 遠程、RS232C、RS485、STP-Link 是標配端口。
可選配 Profibus 和 DeviceNet。
在帶有吹掃氣體的條件下
The STP iXR2206 Maglev turbo-molecular pump utilizes a magnetic bearing and motor drive system and has an ultimate pressure of 10-9 Torr. This integrated controller series can be fully interfaced with advanced controllers to operate on a wide range of applications and processes. It eliminates the need for a conventional, rack-mounted controller and interconnecting cables. The fully integrated product offers easy installation and small footprint as an all-in-one solution for all application tools. The rotor is entirely suspended by magnetic bearings so all contact between the rotor and the remainder of the pump is eliminated. As well as giving very low vibration, the elimination of contact means no bearing wear and no requirement for consequent pump maintenance. The STP iXR2206 can be connected directly to a terminal using a serial port and the STP-link Monitoring Software. The Software Displays, Rotational Speed, Motor Status, Temperature, Rotor balance status and Magnet bearing current.
MAGNETIC BEARING TECHNOLOGY:
The rotor is suspended by multi-axis magnetic bearings, so all contact between the rotor and the remainder of the pump is eliminated. As well as giving very low vibration, the elimination of contact means no bearing wear and no requirement for maintenance.
VIBRATION FREE:
Magnetic levitation of the rotor results in an extremely low level of noise and vibration. Peakto- peak vibration level is less than 0.02 μm. This amplitude remains constant throughout the life of the pump and is free from troublesome subharmonics.
OIL FREE:
All STP turbomolecular pumps are oil free. The use of magnetic bearings eliminates all hydrocarbon lubricants ensuring no contamination of the vacuum process from the turbomolecular pump. This feature is vital in industry and in surface science or high energy physics applications (where even minute degrees of contamination disrupt measurements).
MAINTENANCE FREE:
Unlike conventional mechanical bearings, magnetic levitation means there is no frictional contact, eliminating sources of wear and vibration. This feature enables STP turbomolecular pumps to run for years with virtually no maintenance, reducing annual operating costs to a minimum and ensuring maximum up-time is achieved. This maintenance free feature can be particularly beneficial on processes producing chemical or radioactive contamination.
AUTOMATIC BALANCING SYSTEM (ABS):
ABS is a unique patented development of 5-axis technology. If any rotor imbalance is introduced (by deposition of process by-products, for example), sensors in the pump detect changes in the rotor motion and compensate the magnetic bearing fields to allow the rotor to spin on its natural inertial axis. This minimises the vibration transmitted to the inlet flange. ABS works at all pump rotational speeds.
SAFETY BACKUP BEARINGS:
STP pumps have dry lubricated axial and radial mechanical bearings as safety backup bearings. These support the rotor and protect the pump in the event of a total disruption of magnetic suspension or a massive air inrush which overcomes the magnetic bearing stiffness. These high precision ball bearings are dry lubricated and are not in contact with the rotor during normal operation..
The STP iXR2206 can be used for a variety of applications including but not limited to:
STP-iXR2206 系列磁懸浮渦輪分子泵可提供業內的性能，機載控制裝置中包含新的小型電源供給。其設計理念與 STP-iXA2206/iXA3306 系列相同。新的**性轉軸設計提高了抽取性能，這一集成的產品易于安裝且占地面積小，可作為應用工具的一體化解決方案。
應用
玻璃涂層
太陽能 PVD
工業濺射
特性與優勢
泵和控制器之間不需要連接電纜。
消除了傳統架裝式控制器的安裝空間和成本。
緊湊型設計使安裝更加方便，占地面積更小。
與 STP-A1603 配套時在 8” TMP 同類產品中抽取速度高。
使高氣體流速的功耗降低了 32%。
I/O 遠程、RS232C、RS485、STP-Link 是標配端口。
可選配 Profibus 和 DeviceNet。
數據
| 入口法蘭 |
|
ISO250F/VG250/DN250CF(ICF305) |
| 抽取速度 (L/S) | N2 | 2200 |
|
|
Ar | 2000 |
|
|
H2 | 1350 |
| 壓縮比 | N2 | >108 |
|
|
H2 | 1x103 |
| 極限壓力 | Pa | 10-7 |
| 額定速度 | rpm | 36500 |
| 大壓力 | Pa | 266 |
| 大入口壓力 | Pa | 8.3 |
| 大流量：冷卻水 25 °C，BP=1300 lmin-1 | sccm | N2=2000，Ar=1200 (1500) |
| 冷卻水 25 °C，BP=10000 lmin-1 | sccm | N2=3100，Ar=1300 (1700) |
| 冷卻水 35 °C，BP=1300 lmin-1 | sccm | N2=1500，Ar=900 (1200) |
| 冷卻水 35LC，BP=10000 lmin-1 | sccm | N2=2000，Ar=900 (1300) |
| 啟動時間 | ≤10 | |
| 停止時間 | ≤11 | |
| 噪聲 | dB | <55（額定速度時） |
| 冷卻方法 |
|
水冷卻 |
| 重量 | kg | 48 |
| IP 保護 |
|
IP54 |
| 環境溫度范圍 | ℃ | 0 至 40 |
| 存儲溫度范圍 | ℃ | -5 至 55 |
| 輸入電壓 | ACV | 200 至 240 |
| 大輸入功率 | VA | 750 |
| 輸入頻率 | Hz | 50/60±2 |
| 泄漏電流 | mA | 大 2.0 |
| 輸入相位 |
|
單相 |
| 主保險絲規格 | A | 8 |
| 電流斷開容量 (AIC) | A | 1500（250V 交流，50/60Hz） |
| 正常操作時的輸出頻率 | Hz | 大 608 |

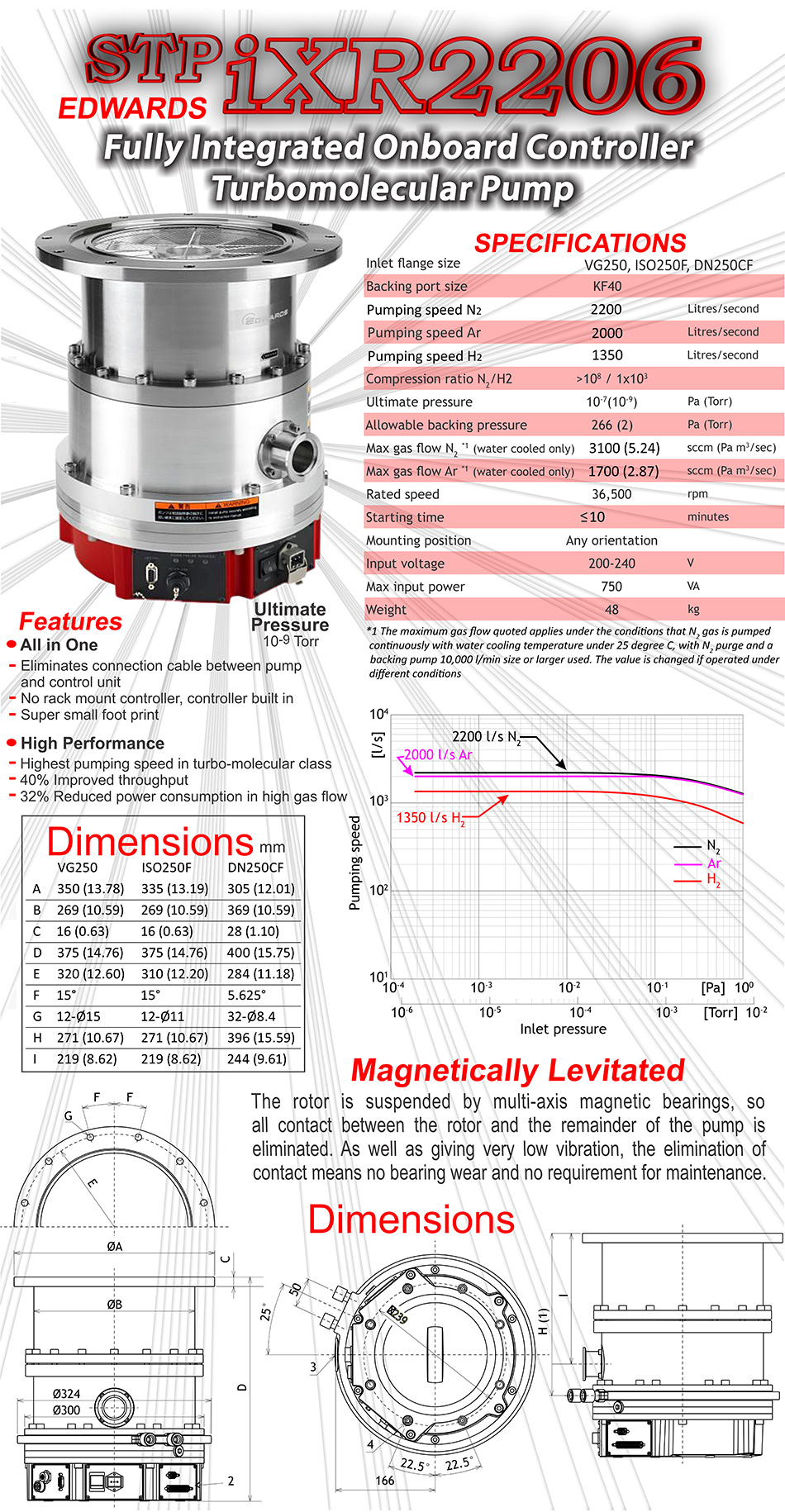

Edwards STP iXR2206 5-axis Magnetic Bearing Turbo-Molecular Pump, ISO250F Inlet, Integrated Controller and built in power supply.
Edwards PN YT850Z000.
Edwards PN YT850Z000.
The STP iXR2206 Maglev turbo-molecular pump utilizes a magnetic bearing and motor drive system and has an ultimate pressure of 10-9 Torr. This integrated controller series can be fully interfaced with advanced controllers to operate on a wide range of applications and processes. It eliminates the need for a conventional, rack-mounted controller and interconnecting cables. The fully integrated product offers easy installation and small footprint as an all-in-one solution for all application tools. The rotor is entirely suspended by magnetic bearings so all contact between the rotor and the remainder of the pump is eliminated. As well as giving very low vibration, the elimination of contact means no bearing wear and no requirement for consequent pump maintenance. The STP iXR2206 can be connected directly to a terminal using a serial port and the STP-link Monitoring Software. The Software Displays, Rotational Speed, Motor Status, Temperature, Rotor balance status and Magnet bearing current.
MAGNETIC BEARING TECHNOLOGY:
The rotor is suspended by multi-axis magnetic bearings, so all contact between the rotor and the remainder of the pump is eliminated. As well as giving very low vibration, the elimination of contact means no bearing wear and no requirement for maintenance.
VIBRATION FREE:
Magnetic levitation of the rotor results in an extremely low level of noise and vibration. Peakto- peak vibration level is less than 0.02 μm. This amplitude remains constant throughout the life of the pump and is free from troublesome subharmonics.
OIL FREE:
All STP turbomolecular pumps are oil free. The use of magnetic bearings eliminates all hydrocarbon lubricants ensuring no contamination of the vacuum process from the turbomolecular pump. This feature is vital in industry and in surface science or high energy physics applications (where even minute degrees of contamination disrupt measurements).
MAINTENANCE FREE:
Unlike conventional mechanical bearings, magnetic levitation means there is no frictional contact, eliminating sources of wear and vibration. This feature enables STP turbomolecular pumps to run for years with virtually no maintenance, reducing annual operating costs to a minimum and ensuring maximum up-time is achieved. This maintenance free feature can be particularly beneficial on processes producing chemical or radioactive contamination.
AUTOMATIC BALANCING SYSTEM (ABS):
ABS is a unique patented development of 5-axis technology. If any rotor imbalance is introduced (by deposition of process by-products, for example), sensors in the pump detect changes in the rotor motion and compensate the magnetic bearing fields to allow the rotor to spin on its natural inertial axis. This minimises the vibration transmitted to the inlet flange. ABS works at all pump rotational speeds.
SAFETY BACKUP BEARINGS:
STP pumps have dry lubricated axial and radial mechanical bearings as safety backup bearings. These support the rotor and protect the pump in the event of a total disruption of magnetic suspension or a massive air inrush which overcomes the magnetic bearing stiffness. These high precision ball bearings are dry lubricated and are not in contact with the rotor during normal operation..
The STP iXR2206 can be used for a variety of applications including but not limited to:
- Plasma etch (chlorine, fluorine and bromine chemistries) for metal (aluminum), tungsten and dielectric (oxide) and polysilicon
- Electron cyclotron resonance (ECR) etch
- Film deposition CVD, PECVD, ECRCVD, MOCVD
- Sputtering
- Ion implantation source, beam line pumping end station
- MBE
- Diffusion
- Photo resist stripping
- Crystal/epitaxial growth
- Wafer inspection
- Load lock chambers
- Scientific instruments: surface analysis, mass spectrometry, electron microscopy
- High energy physics: beam lines, accelerators
- Radioactive applications: fusion systems, cyclotrons
